FEATURES

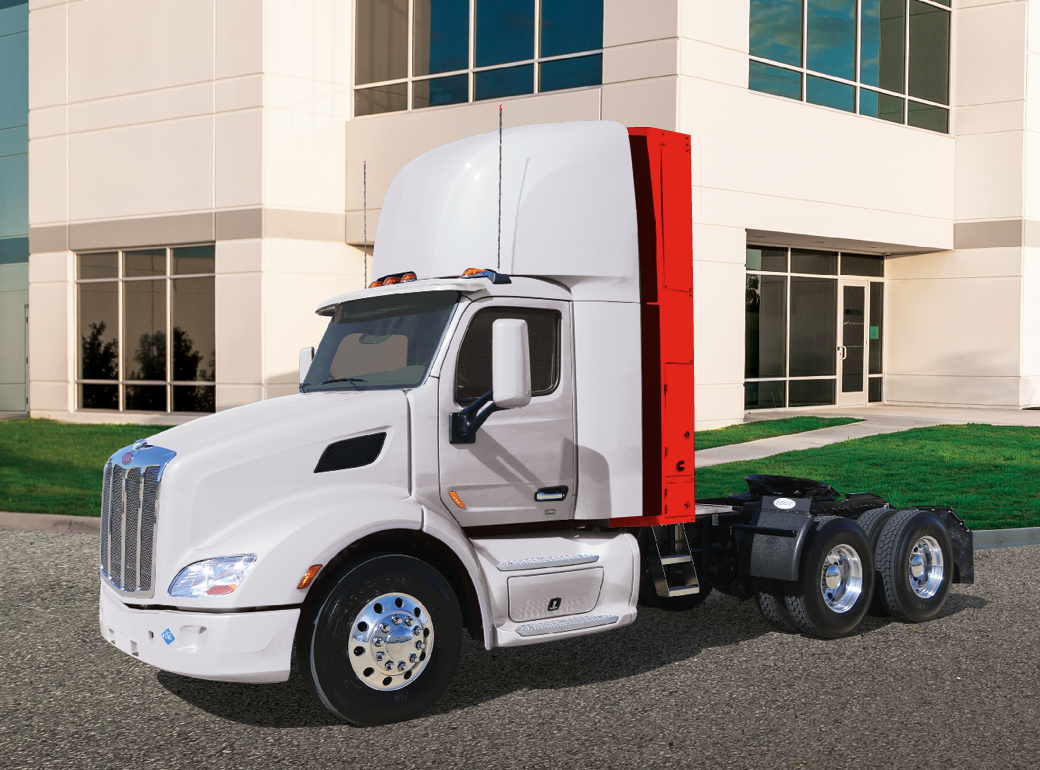

- Integrates with OEM cab extenders for improved aerodynamics (mounts within 6 inches of cab)
- Equipped with GreenLync® 3.0 technology providing an in-dash driver message center, Cummins engine ECM integration and telematics support
- Fuel lines are color-coded yellow and PRD live lines are red for safety
- Type IV cylinders with quarter-turn ball valves
- NGV1 and HD fill ports on both driver and passenger side
SPECIFICATIONS
65N DGE SYSTEM
- # and Size of Cylinders: (4) 16" dia
- Water Volume: 823 L
- Height/Depth/Width: 74.56/19.63/90.37"
- System Empty/Full Weight: 1,400/1,800 lbs.
95N DGE SYSTEM
- # and Size of Cylinders: (3) 22" dia
- Water Volume: 1,262 L
- Height/Depth/Width: 74.06/26.09/96.44"
- System Empty/Full Weight: 1,850/2,450 lbs.
135N DGE SYSTEM
- # and Size of Cylinders: (3) 27" dia
- Water Volume: 1,737 L
- Height/Depth/Width: 87/29.89/91.09"
- System Empty/Full Weight: 2,038/2,875 lbs.
175N DGE SYSTEM
- # and Size of Cylinders: (4) 27" dia
- Water Volume: 2,316 L
- Height/Depth/Width: 115/29.89/91.09"
- System Empty/Full Weight: 2,472/3,557 lbs.
INTEGRATED FUEL MANAGEMENT
Our Fuel Management Module (FMM) was designed with performance, serviceability and durability in mind for heavy- and medium-duty vehicles. All of our systems include an FMM that fully integrates with Geotab® and other compatible telematics platforms, allowing fleet managers to monitor their fuel usage and better manage their fuel consumption.
